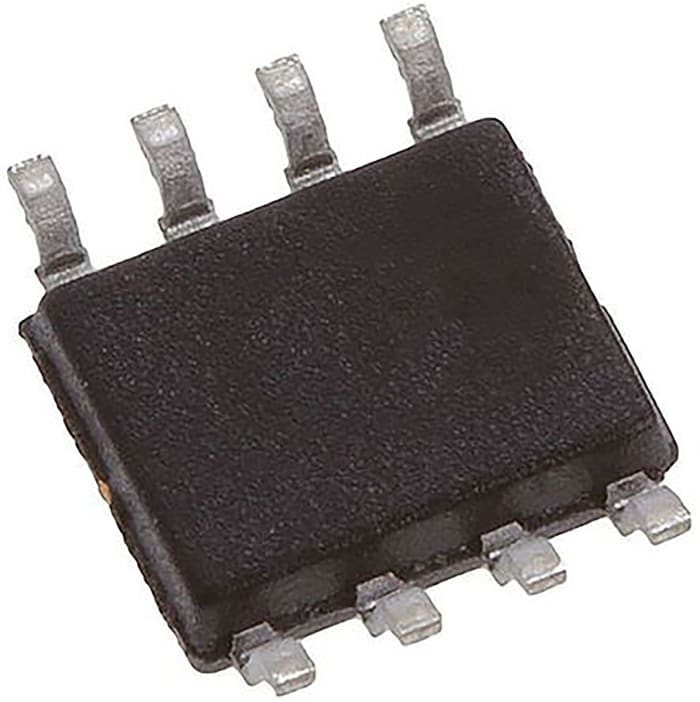

TLC2272AID Texas Instruments, Operational Amplifier, 2.2 MHz, 8-Pin 8 V SOIC
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
Operational Amplifier
Mount Type
Surface
Package Type
SOIC
Number of Channels
2
Pin Count
8
GBP - Gain Bandwidth Product
2.2MHz
Maximum Supply Voltage
8V
Minimum Supply Voltage
5V
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
1.5 mV
Input Bias Current
800 pA
Slew Rate
3.6V/μs
Maximum Operating Temperature
125°C
Height
1.58mm
Length
4.9mm
Standards/Approvals
REACH, RoHS
Width
3.91 mm
Series
TLC2272
Automotive Standard
AEC-Q100
Output Current
50mA
Input Offset Current
800 pA
Product details
LinCMOS Operational Amplifiers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 15.75
€ 3.15 Each (In a Pack of 5) (Exc. Vat)
€ 19.06
€ 3.812 Each (In a Pack of 5) (inc. VAT)
Standard
5
€ 15.75
€ 3.15 Each (In a Pack of 5) (Exc. Vat)
€ 19.06
€ 3.812 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | € 3.15 | € 15.75 |
| 25 - 120 | € 2.50 | € 12.50 |
| 125 - 620 | € 2.15 | € 10.75 |
| 625 - 1245 | € 2.10 | € 10.50 |
| 1250+ | € 2.05 | € 10.25 |
