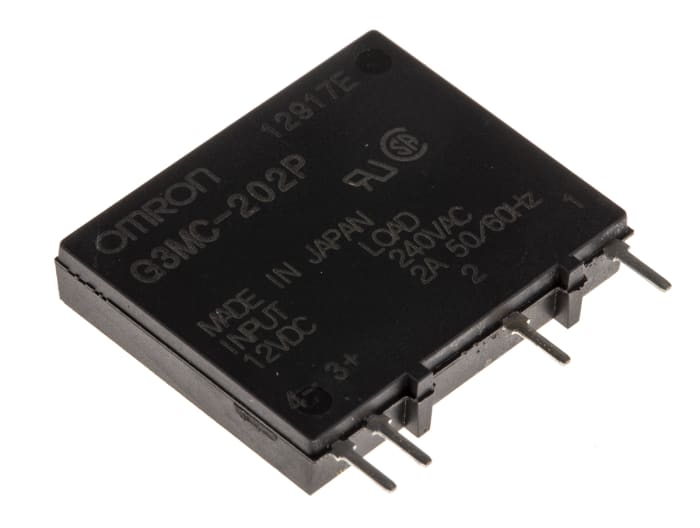

Omron G3MC Series Solid State Relay, 2 A Load, PCB Mount, 264 V ac Load, 14.4 V dc Control
Techniniai dokumentai
Specifikacijos
Markė
OmronMaximum Load Current
2 A
Tvirtinimo tipas
PCB Mount
Maximum Load Voltage
264 V ac
Minimum Load Voltage
75 V ac
Minimum Control Voltage
9.6 V dc
Maximum Control Voltage
14.4 V dc
Switching Type
Zero Cross
Control Voltage Range
9.6 → 14.4 V dc
Minimum Load Current
0.1 A
Contact Configuration
SPST
Terminal Type
PCB Pin
Output Device
Phototriac
Maximum Turn On Time
1ms
Serija
G3MC
Load Voltage Range
75 → 264V ac
Matmenys
24.5 x 4.5 x 20.5mm
Aukštis
20.5mm
Off State Leakage Current
1.5 mA
Ilgis
24.5mm
Operating Temperature Range
-30 → +80°C
Minimali darbinė temperatūra
-30°C
Maksimali darbinė temperatūra
+80°C
Gylis
4.5mm
Produkto aprašymas
G3MC SSR
Solid State Relays from Omron that are compact with a thin profile, ideal for close PCB mounting. They are a small bottom surface area SSR with a monoblock construction incorporating the PCB, terminals and a heatsink.
Approvals
UL, CSA
Sandėlio informacija laikinai nepasiekiama.
Patikrinkite dar kartą.
€ 7,88
už 1 vnt. (be PVM)
€ 9,53
už 1 vnt. (su PVM)
1
€ 7,88
už 1 vnt. (be PVM)
€ 9,53
už 1 vnt. (su PVM)
1
Pirkti dideliais kiekiais
| kiekis | Vieneto kaina |
|---|---|
| 1 - 24 | € 7,88 |
| 25 - 49 | € 6,20 |
| 50 - 99 | € 5,98 |
| 100 - 249 | € 5,78 |
| 250+ | € 5,46 |
