Technical Document
Specifications
Brand
HartingGender
Female
Product Type
D-Sub Connector Pneumatic Contact
Contact Material
Copper Alloy
Contact Plating
Gold
Maximum Contact Resistance
1mΩ
Contact Type
Pneumatic
Series
D-Sub Mixed
Length
22.5mm
Standards/Approvals
No
Product details

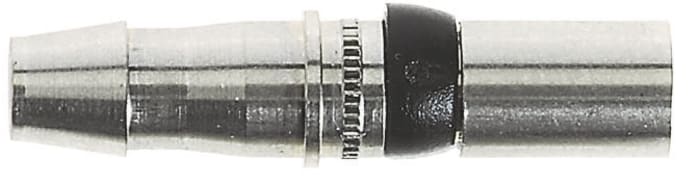

These Pneumatic contacts allow the introduction of pneumatics into combination D-Type connectors ideal for use in Industrial and Automation applications.
Range covers 2-4mm inner diameter
No tooling required for assembly
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Stock information temporarily unavailable.
€ 12.90
€ 12.90 Each (Exc. Vat)
€ 15.61
€ 15.61 Each (inc. VAT)
1
€ 12.90
€ 12.90 Each (Exc. Vat)
€ 15.61
€ 15.61 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 12.90 |
| 5 - 9 | € 12.30 |
| 10+ | € 11.60 |
