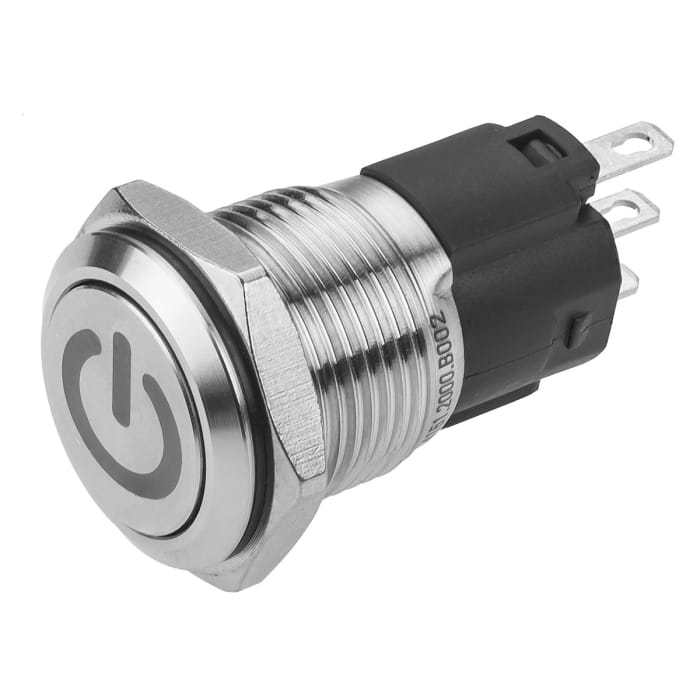

EAO 82 Series Push Button Switch, Latching, Panel, 16 mm Cutout, SPDT, IP65, IP67, 240 V dc 240 V ac

Name: EAO 82 Series Push Button Switch, Latching, Panel, 16 mm Cutout, SPDT, IP65, IP67, 240 V dc 240 V ac
Brand: EAO
SKU: 1942045
Availability: LimitedAvailability

RS Stock No.: 194-2045Brand: EAOManufacturers Part No.: 82-4151.2000.B002Distrelec Article No.: 30159086

View all in Push Button Switches

Technical Documents

Specifications

Brand

EAO

Product Type

Push Button Switch

Switch Operation

Latching

Illuminated

Panel Cutout Size

16 mm

Series

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Plug-In

IP Rating

IP65, IP67

Contact AC Voltage

240V ac

Actuator Style

Round

Minimum Operating Temperature

-30°C

Contact DC Voltage

240V dc

Maximum Operating Temperature

70°C

Switch Configuration

Length

35.5mm

Standards/Approvals

CB, CCC, cUL, UL

Switch Contact Current

Legend

Standby Symbol

Product Details

Vandal-resistant: Impact resistant
Front protection
Gold-plated silver contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life: > 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
16 mm, 19 mm or 22 mm mounting
Application
Exposed public areas: e.g. ticketing and vending machines
Industrial: Machinery and factory equipment
Lifting and moving: Elevators and people movers
Building management: Access control and security systems
Audio and video equipment
Medical equipment
Food Industry (corrosion and acid resistant versions available on request)
