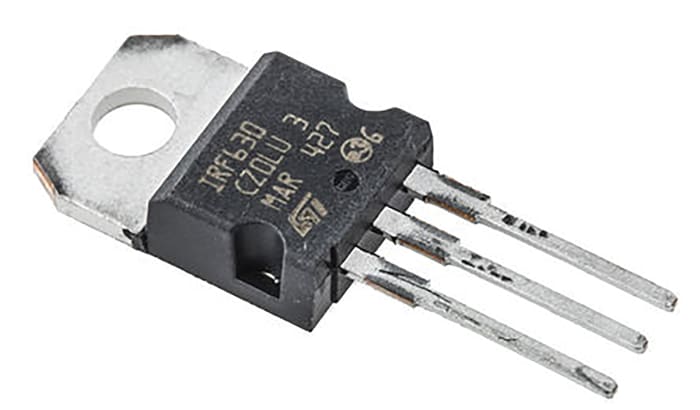

STMicroelectronics IRF630 N-channel MOSFET, 9 A, 200 V STripFET, 3-Pin TO-220
Technical Document
Specifications
Brand
STMicroelectronicsChannel Type
N
Maximum Continuous Drain Current
9 A
Maximum Drain Source Voltage
200 V
Series
STripFET
Package Type
TO-220
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
400 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
75 W
Transistor Configuration
Single
Maximum Gate Source Voltage
-20 V, +20 V
Width
4.6mm
Typical Gate Charge @ Vgs
31 nC @ 10 V
Transistor Material
Si
Number of Elements per Chip
1
Length
10.4mm
Maximum Operating Temperature
+150 °C
Height
9.15mm
Minimum Operating Temperature
-65 °C
Product details
N-Channel STripFET™, STMicroelectronics
MOSFET Transistors, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 18.22
€ 0.729 Each (Supplied in a Tube) (Exc. Vat)
€ 22.05
€ 0.882 Each (Supplied in a Tube) (inc. VAT)
Production pack (Tube)
25
€ 18.22
€ 0.729 Each (Supplied in a Tube) (Exc. Vat)
€ 22.05
€ 0.882 Each (Supplied in a Tube) (inc. VAT)
Production pack (Tube)
25
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Tube |
|---|---|---|
| 25 - 95 | € 0.729 | € 3.64 |
| 100 - 245 | € 0.558 | € 2.79 |
| 250 - 495 | € 0.525 | € 2.63 |
| 500+ | € 0.492 | € 2.46 |
