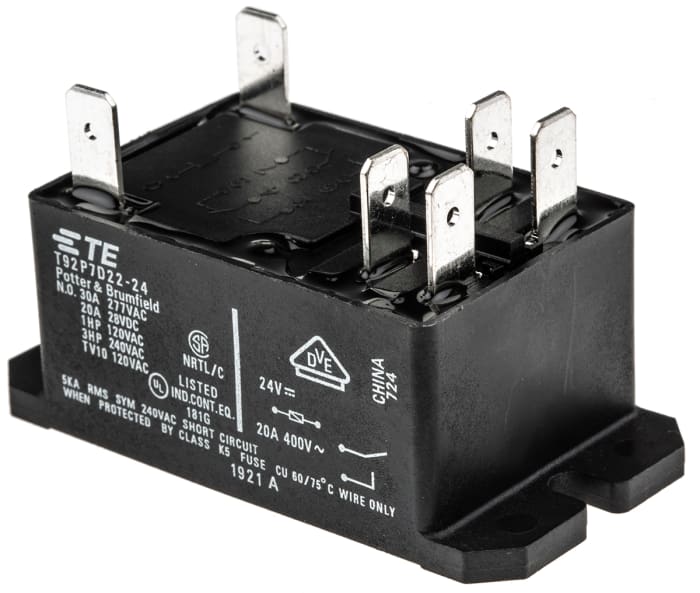

TE Connectivity Flange Mount Non-Latching Relay, 24V dc Coil, 30A Switching Current, DPST

RS Stock No.: 680-2571Brand: TE ConnectivityManufacturers Part No.: T92S7D22-24=T92
brand-logo
View all in Power Relays

Technical Document

Specifications

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

DPST

Mounting Type

Flange Mount

Switching Current

30A

Terminal Type

Quick Connect

Length

68.58mm

Coil Resistance

350 Ω

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+85°C

Depth

34.54mm

Height

37.97mm

Contact Material

Silver Alloy

Maximum Switching Power AC

1.2 kVA

Application

Power
