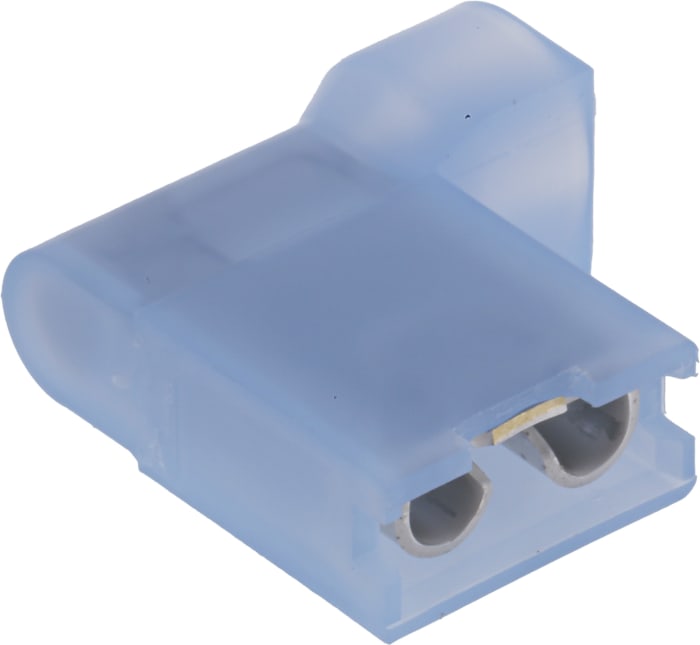

TE Connectivity PIDG FASTON .250 Blue Insulated Female Spade Connector, Flag Terminal, 6.35 x 0.81mm Tab Size, 1.2mm²
Techniniai dokumentai
Specifikacijos
Markė
TE ConnectivityType
Flag Terminal
Serija
PIDG FASTON .250
Minimum Wire Size mm²
1.2mm²
Gender
Female
Maximum Wire Size mm²
2mm²
Tab Size
6.35 x 0.81mm
Tab Width
6.35mm
Tab Thickness
0.81mm
Insulation
Insulated
Minimum Wire Size AWG
16AWG
Maximum Wire Size AWG
14AWG
Užbaigimo būdas
Crimp
Spalva
Blue
Contact Material
Brass
Contact Plating
Tin
Insulation Material
Nylon
Overall Length
19.3mm
Produkto aprašymas
TE Connectivity PIDG Faston 250 Flag Receptacle Wire Crimp Terminals
PIDG insulated Faston 250 flag receptacle receptacle wire crimp terminals with a mating area interface of 6.35 x 0.81mm. These PIDG Faston 250 quick disconnect flag receptacle crimp terminals consist of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG insulated Faston 250 quick disconnect flag receptacle wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Approvals
UL recognised
TE Connectivity PIDG Terminals
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Sandėlio informacija laikinai nepasiekiama.
Patikrinkite dar kartą.
€ 1,365
Each (In a Pack of 100) (be PVM)
€ 1,652
Each (In a Pack of 100) (su PVM)
100
€ 1,365
Each (In a Pack of 100) (be PVM)
€ 1,652
Each (In a Pack of 100) (su PVM)
100
Pirkti dideliais kiekiais
| kiekis | Vieneto kaina | Per Pakuotė |
|---|---|---|
| 100 - 100 | € 1,365 | € 136,50 |
| 200 - 300 | € 1,26 | € 126,00 |
| 400 - 400 | € 1,155 | € 115,50 |
| 500+ | € 1,05 | € 105,00 |
