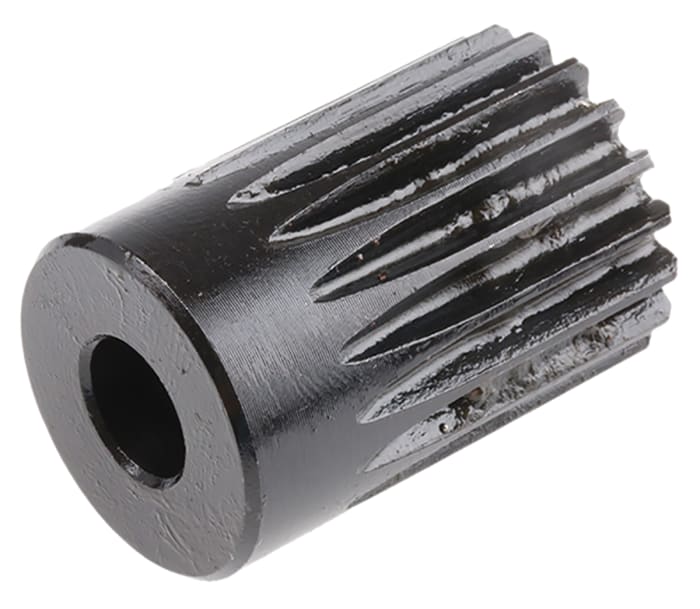

RS PRO Stainless Steel 18 Teeth Spur Gear, 1 Module, 8 mm Bore Diam, 18 mm Pitch Diam, 20 mm Hub Diam
Technical Document
Specifications
Brand
RS ProModule
1
Product Type
Spur Gear
Number of Teeth
18
Material
Stainless Steel
Bore Size
8 mm
Pitch Diameter
18mm
Hub Diameter
20mm
Face Width
10mm
Pressure Angle
20°
Standards/Approvals
DIN 3962, DIN 3963, DIN 867
Product details
Metric Spur Gears Stainless Steel
Stainless steel spur gears providing a range of gear ratios. All gears are module 1.0
Made from SUS303 (JIS 4051) stainless steel
Tensile strength 510N/mm²
Pressure angle 20°
Dimension E 10mm
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 40.10
€ 40.10 Each (Exc. Vat)
€ 48.52
€ 48.52 Each (inc. VAT)
1
€ 40.10
€ 40.10 Each (Exc. Vat)
€ 48.52
€ 48.52 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 40.10 |
| 5 - 9 | € 39.30 |
| 10 - 24 | € 38.50 |
| 25+ | € 37.70 |
