Technical Documents
Specifications
Brand
RS ProProduct Type
Flow Meter
Connection Thread Size
1/4 in
Connection Thread Standard
BSP
Standards/Approvals
No
Wetted Materials
Elastomer, Ceramic, Polyetheretherketone
Minimum Flow Rate
0.01L/min
Maximum Flow Rate
1L/min
Country of Origin
United Kingdom
Product Details

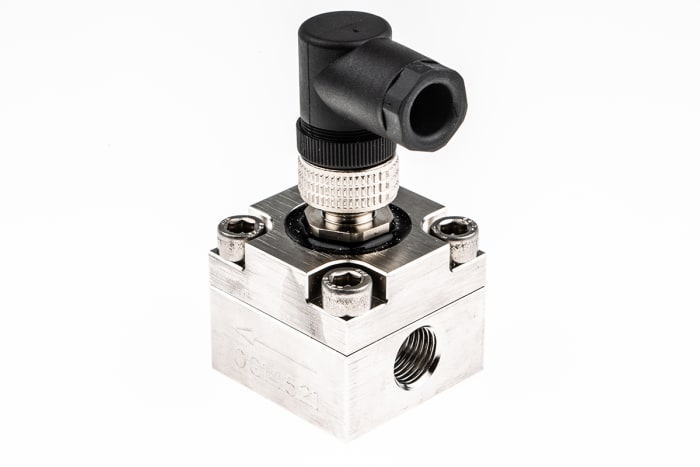

When measuring viscous fluids like oils and fuels, you need a flow meter with good resistance to chemicals combined with low loss of pressure. This RS PRO compact oval gear meter will do the job, providing you with long-lasting service thanks to its robust construction.
The meter contains two oval-shaped gears that move along with the fluid being measured. Their rotations are transmitted by magnets using a Hall-effect sensor, providing about 1,100 pulses per litre passing through. This product covers flow ranges from 0.01 L/min to 1.0 L/min on 30 cSt oil and 0.1 L/min to 1.0 L/min on liquids such as water. It fits on a quarter-inch British Standard Pipe (BSP) thread.
Corrosion-resistant, it's encased in stainless steel with a durable Viton O-ring. IP67-rated, it's watertight. This type of flow meter is used for measuring fuel usage in engines, as well as in hydraulics and the food industry.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
