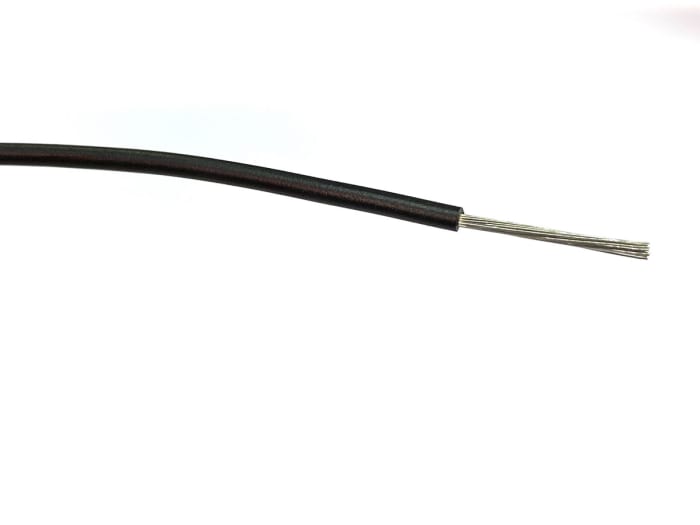

RS PRO Black 1 mm² Equipment Wire, 17 AWG, 32/0.2 mm, 500m, PVC Insulation
Techniniai dokumentai
Specifikacijos
Markė
RS ProCross Sectional Area
1 mm²
Sheath Colour
Black
American Wire Gauge
17 AWG
Cable Shape
Single Core
Core Strands
32/0.2 mm
Ilgis
500m
Insulation material
PVC
Įtampos reitingas
1.5 kV
Outer Diameter
2.65mm
Maksimali darbinė temperatūra
+85°C
Minimali darbinė temperatūra
-20°C
Conductor Material
Tinned Copper
Wire Style
BS4808
Standards Met
Def Stan 61-12 Part 6
Shield Type
Unshielded
Insulation Wall Thickness
0.6mm
Size of Strands
0.2 mm
Number of Strands
32
Kilmės šalis
China
Produkto aprašymas
RS Pro Hook Up Wire
Brought to you by RS Pro, these wires are intended for internal wiring applications in electrical and electronic equipment, they meet the requirements of IEC60332-1. The high-quality inner conductor defines the flexibility and conductivity of the wire. Tin used in conjunction with copper boosts the coppers properties and helps the wire to last much longer and counter acts against oxidation. They are simply more flexible and resistant to bending. At the same time, a particular cross-section of stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility. All models are highly reliable and excellent quality.
Flexible cables for equipment cabling
Sandėlio informacija laikinai nepasiekiama.
Patikrinkite dar kartą.
€ 131,10
1 Reel of 500 Metres (be PVM)
€ 158,63
1 Reel of 500 Metres (su PVM)
1
€ 131,10
1 Reel of 500 Metres (be PVM)
€ 158,63
1 Reel of 500 Metres (su PVM)
1
Pirkti dideliais kiekiais
| kiekis | Vieneto kaina |
|---|---|
| 1 - 1 | € 131,10 |
| 2 - 4 | € 122,55 |
| 5 - 9 | € 114,95 |
| 10+ | € 106,40 |
