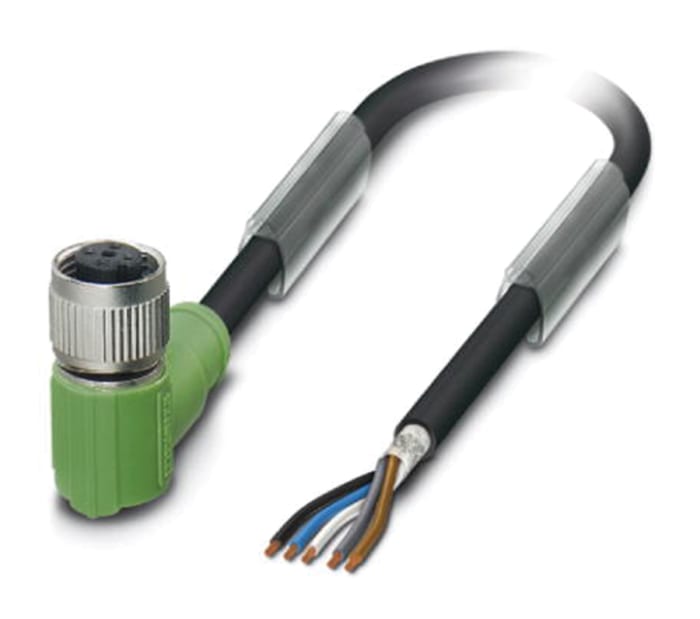

Phoenix Contact Right Angle Female 5 way M12 to Straight Unterminated Sensor Actuator Cable, 10m
Technical Document
Specifications
Brand
Phoenix ContactSeries
SAC-5P
Cross Sectional Area
0.34 mm²
Number of Cores
5
Sheath Material
PUR
Length
10m
Sheath Colour
Black
Connector 1 Gender
Female
Connector 1
M12
Connector 1 Orientation
Right Angle
Connector 1 Number of Contacts
5
Connector 2
Unterminated
Connector 2 Orientation
Straight
Coding
A
Mounting Type
Plug-In
Shielded/Unshielded
Shielded
Current Rating
4 A
Voltage Rating
60 V
IP Rating
IP65, IP67
Outer Diameter
5.9mm
Conductor Resistance
57 O/km
American Wire Gauge
22 AWG
Operating Temperature Range
-40 → +80 °C
Connector 1 Housing Gender
Female
Minimum Operating Temperature
-40°C
Oil Resistant
Yes
Cable Shape
Twisted Pair
Standards Met
IEC 61076-2-101
Fire Behaviour
Halogen Free
Insulation material
PP
Maximum Operating Temperature
+80°C
Conductor Material
Bare Cu litz wires
Minimum Bend Radius
29.5 mm (Fixed), 59 mm (Movable)
Country of Origin
Poland
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 44.80
€ 44.80 Each (Exc. Vat)
€ 54.21
€ 54.21 Each (inc. VAT)
1
€ 44.80
€ 44.80 Each (Exc. Vat)
€ 54.21
€ 54.21 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
