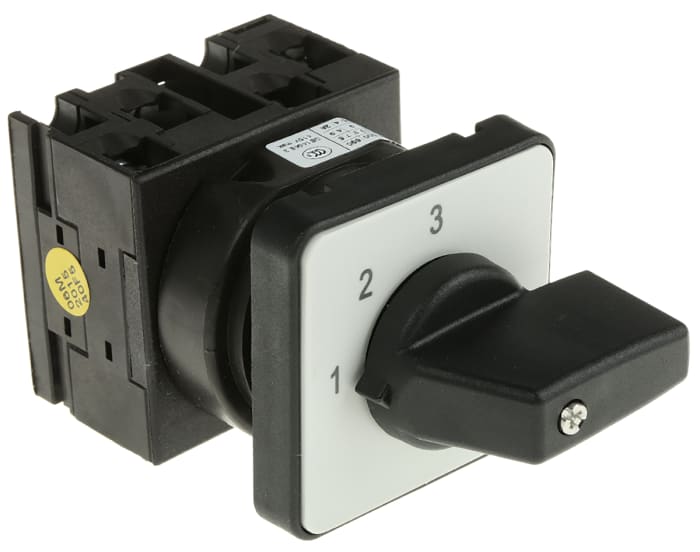

Eaton, SP 4 Position 60° Multi Step Cam Switch, 690V ac, 20A, Toggle Actuator
Technical Document
Specifications
Brand
EatonPole and Throw Configuration
SP
Cam Switch Type
Multi Step Cam Switch
Normal State Configuration
3NO/NC
Maximum Current
20A
Maximum Voltage
690V ac
Number of Positions
4
Terminal Type
Screw
Angle of Throw
60°
Length
48mm
Width
48mm
Depth
50mm
Actuator Type
Toggle
Mounting Type
Flush Mounted
Dimensions
50 x 48 x 48mm
Country of Origin
United Kingdom
Product details
Switches-22mm Single Hole or Standard Three-hole Flush Mounting
Black thumb-grip handle and silver escutcheon plate
Conform to IEC947/EN 60947
Maximum panel thickness 5mm
48 x 48mm switch front plate
Finger-proof terminals
IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting)
Operating current: 20A
Operating temperature: –25 to +50°C
Approvals
UL, CSA
