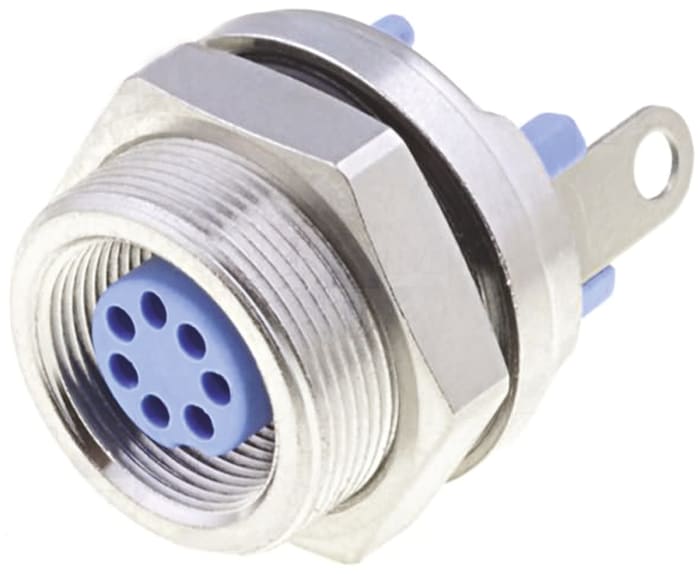

binder Circular Connector, 7 Contacts, Panel, M9 Connector, Socket, Female, IP67, 712 Series
Technical Document
Specifications
Brand
BinderNumber of Contacts
7
Product Type
Circular Connector
Mount Type
Panel
Connector Size
M9
Current
1A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP67
Series
712
Orientation
Straight
Voltage
125 V
Shell Size
11.5 mm
Minimum Operating Temperature
-25°C
Termination Type
Solder
Maximum Operating Temperature
70°C
Housing Material
Brass
Standards/Approvals
No
Contact Plating
Gold
Distrelec Product Id
144-43-859
Contact Material
Brass
Country of Origin
Germany
Product details
Panel Plug & Socket
Panel plugs and sockets feature a keying groove for anti-rotation so they may be either mounted into the appropriate panel hole (details above) or mounted straight into a 12mm hole (with no key tongue) and fixed with the flange plate kit.
Binder M9 Subminiature Connectors, Metal, IP67 - Series 712
Subminiature circular connectors that provide IP65 protection and mate by screw locking. Cable termination is by solder bucket. The metal front end construction makes sure there is a rugged performance whilst the rear end plastic construction incorporates cable clamping for cables up to a 5mm diameter (maximum). Assembly instructions are supplied.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 14.60
€ 14.60 Each (Exc. Vat)
€ 17.67
€ 17.67 Each (inc. VAT)
1
€ 14.60
€ 14.60 Each (Exc. Vat)
€ 17.67
€ 17.67 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 49 | € 14.60 |
| 50 - 99 | € 13.70 |
| 100 - 249 | € 12.80 |
| 250 - 499 | € 11.90 |
| 500+ | € 11.00 |
