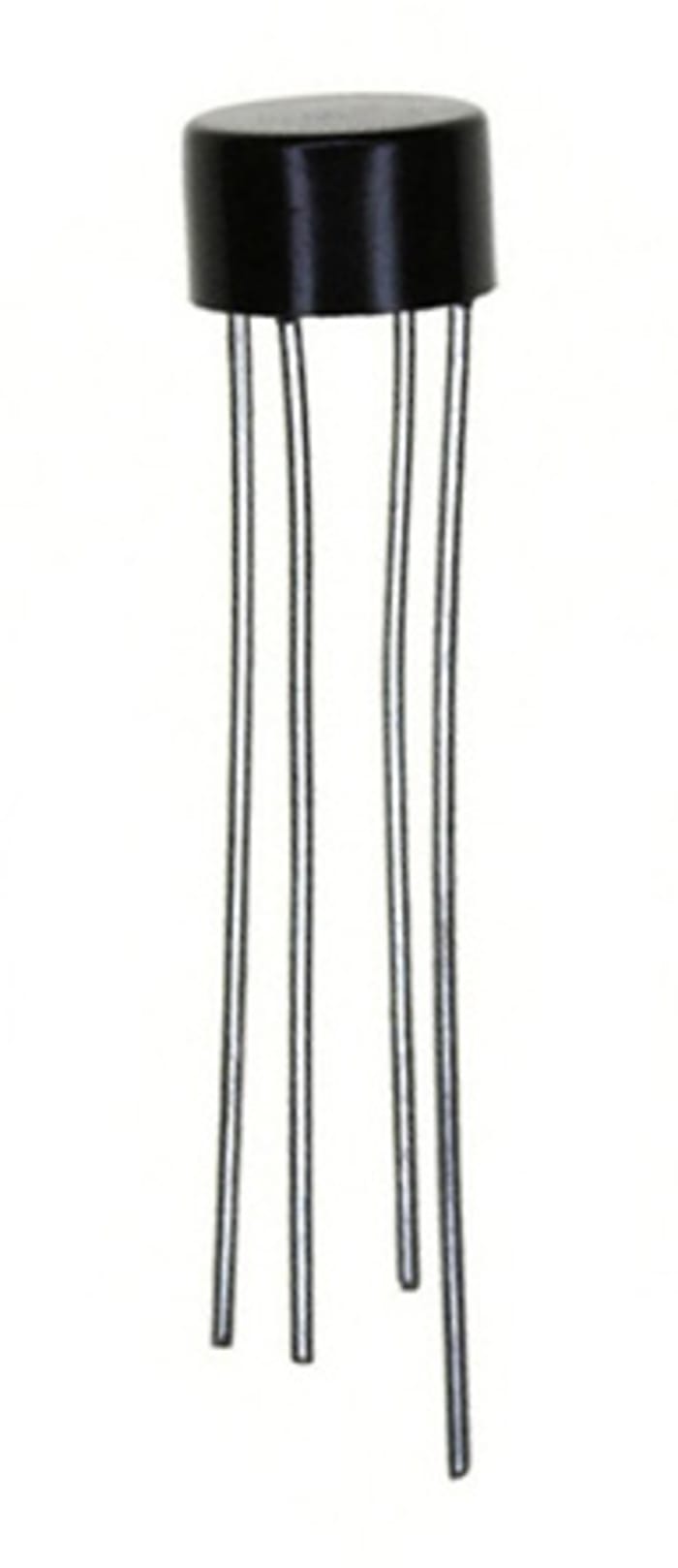

Vishay Bridge Rectifier, 1.2A, 125V, 4-Pin
Techniniai dokumentai
Specifikacijos
Markė
VishayPeak Average Forward Current
1.2A
Bridge Type
Single Phase
Peak Reverse Repetitive Voltage
125V
Tvirtinimo tipas
Through Hole
Pakuotės tipas
WOG
Kaiščių skaičius
4
Configuration
Single
Peak Non-Repetitive Forward Surge Current
45A
Maksimali darbinė temperatūra
+125 °C
Minimali darbinė temperatūra
-40 °C
Peak Forward Voltage
1V
Peak Reverse Current
10µA
Matmenys
9.86 x 8.84 x 5.6mm
Ilgis
9.86mm
Plotis
8.84mm
Aukštis
5.6mm
Kilmės šalis
China
Produkto aprašymas
Bridge Rectifiers with Wire Leads, B...C1000G Series, Vishay Semiconductor
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 13,35
€ 0,534 Each (In a Pack of 25) (be PVM)
€ 16,15
€ 0,646 Each (In a Pack of 25) (su PVM)
Standartas
25
€ 13,35
€ 0,534 Each (In a Pack of 25) (be PVM)
€ 16,15
€ 0,646 Each (In a Pack of 25) (su PVM)
Sandėlio informacija laikinai nepasiekiama.
Standartas
25
Sandėlio informacija laikinai nepasiekiama.
| kiekis | Vieneto kaina | Per Pakuotė |
|---|---|---|
| 25 - 225 | € 0,534 | € 13,35 |
| 250 - 600 | € 0,41 | € 10,25 |
| 625 - 1225 | € 0,373 | € 9,32 |
| 1250 - 2475 | € 0,277 | € 6,92 |
| 2500+ | € 0,251 | € 6,28 |
