Keithley 2002 Bench Digital Multimeter, True RMS, 2A ac Max, 2A dc Max, 750V ac Max
Techniniai dokumentai
Specifikacijos
Markė
KeithleyMultimeter Type
Bench
Model Number p
2002
Display Type
Digital
Functions Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Absolute Maximum DC Voltage Measurement
1000V dc
Absolute Maximum AC Voltage Measurement
750V ac
Absolute Maximum AC Current Measurement
2A ac
Absolute Maximum DC Current Measurement
2A dc
Absolute Maximum Resistance Measurement
1GΩ
True RMS
Yes
Maximum Frequency
15MHz
DC Current Measurement Resolution
10pA dc
Resistance Measurement Resolution
1µΩ
DC Voltage Measurement Resolution
10nV dc
Ilgis
369mm
Minimali darbinė temperatūra
0°C
Maksimali darbinė temperatūra
+50°C
Plotis
214mm
Best AC Current Accuracy
±4% + 0.015
Aukštis
90mm
Best DC Current Accuracy
±0.05% + 2 Digits
Weight
4.2kg
Best AC Voltage Accuracy
±7% + 0.2
Matmenys
90 x 214 x 369mm
Best DC Voltage Accuracy
±0.00555% + 0.06
Kilmės šalis
China
Produkto aprašymas

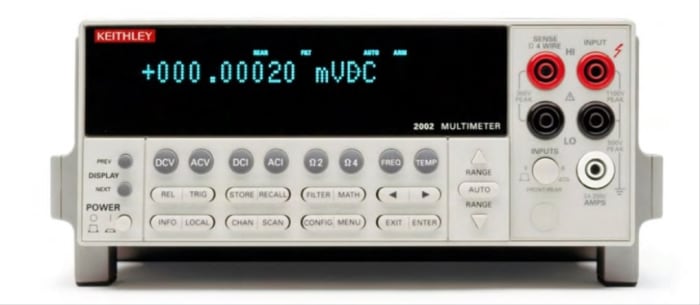

Keithley 2002 8 1/2 digit High Performance Multimeters with 8K Memory
The 2002 offers measurement technology which makes them attractive options to higher-priced, high-end digital multimeters. Other 8-digit DMMs may average multiple readings to extend their resolution. The resolution specifications of the 2002 is based on a 28-bit A/D converter that provides the resolution needed to discern smaller changes. The higher resolution provides greater dynamic range, enabling measurement from 1 μV to 20 V on a single range and avoiding range-shift errors and delays. It is an ideal instrument for production test applications that demand high precision.
The 202 has many built-in measurements that are normally unavailable in similar instruments, these include in-circuit current, temperature with thermocouples or RTDs and peak spikes. In addition, this instrument offers extended DCV and resistance measurement capabilities.
With the 202, there is no need for an oscilloscope to determine if the crest factor is acceptable, the digital multimeter measures it directly.
