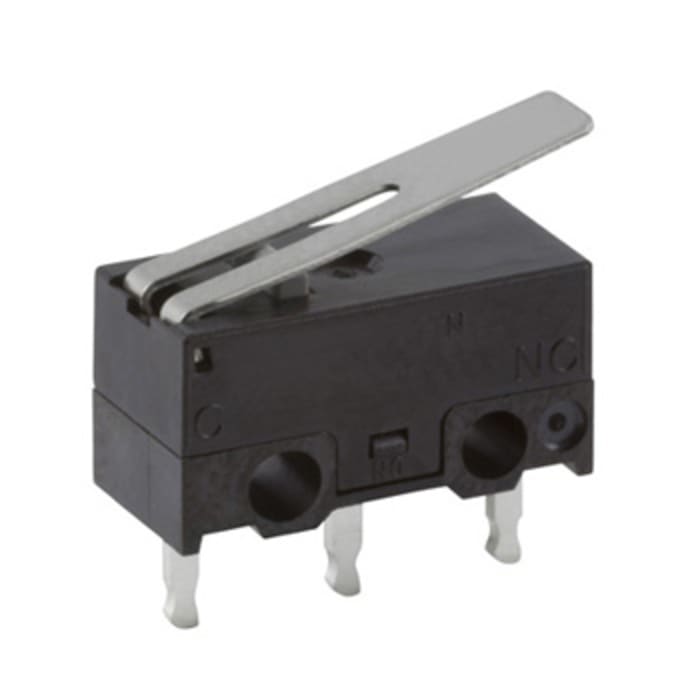

ZF Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT

RS Stock No.: 538-8787Brand: ZFManufacturers Part No.: DG13-B1LA
brand-logo
View all in Micro Switches

Technical Document

Specifications

Brand

ZF

Actuator Type

Hinge Lever

Terminal Type

PCB

Contact Current Rating

3 A @ 125 V ac

Contact Configuration

SPDT

Operating Force

0.44 N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+85°C

Contact Material

Silver Alloy

Mechanical Life

1000000Operations

Operating Temperature Range

-25 → +85°C

Product details

Miniature PCB Microswitch

Available with a choice of actuators
Switch body moulded from UL94V-0 material
SPDT silver-plated wiping contacts
Operating temperature range: -25 to +85°C

Approvals

UL recognised component, CSA certified

You may be interested in
SPDT snap action lever microswitch
Price on AskingEach (In a Pack of 5) (Exc. Vat)
ZF Roller Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT
€ 1.609Each (In a Pack of 5) (Exc. Vat)
Stock information temporarily unavailable.

€ 16.39

€ 3.278 Each (In a Pack of 5) (Exc. Vat)

€ 19.83

€ 3.966 Each (In a Pack of 5) (inc. VAT)

ZF Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT
sticker-462

€ 16.39

€ 3.278 Each (In a Pack of 5) (Exc. Vat)

€ 19.83

€ 3.966 Each (In a Pack of 5) (inc. VAT)

ZF Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT
Stock information temporarily unavailable.
sticker-462

Stock information temporarily unavailable.

Please check again later.

QuantityUnit pricePer Pack
5 - 245€ 3.278€ 16.39
250 - 745€ 2.898€ 14.49
750 - 1245€ 2.518€ 12.59
1250 - 2495€ 2.138€ 10.69
2500+€ 2.09€ 10.45
